Steel Security Crimp Top Gate - Satin Black

Steel Security Crimp Top Swing Gates

Fencing Components’ Steel Security Crimp Top Swing Gates are built for schools, commercial properties, and high-security applications, offering exceptional strength, durability, and compliance with Australian Standards.

Premium-Quality Steel Construction

Manufactured from graded steel with a 100g/m² galvanising zinc coating, these gates are treated with Henkel’s Bonderite MNT 20163 multi-metal ceramic treatment to provide superior corrosion resistance, wear protection, and adhesion. The double fillet picket weld with silicon bronze ensures superior strength.

Deep dive into our product pre-treatment, quality assurance and what makes us the top choice.

Specifications:

✔ Material: Pre-galvanised, Dura-Coat Primer, AkzoNobel Treatment & Powder-Coated Satin Black
✔ Gap/Centre Distance: 90mm / 115mm (Excludes XLT models)

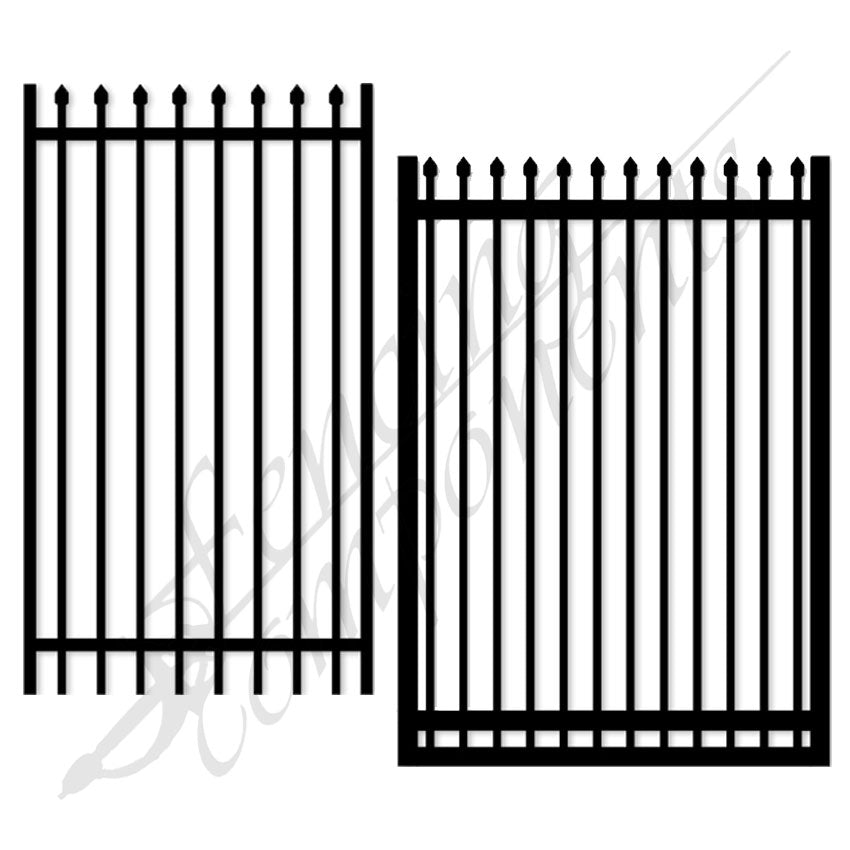

✔ Frame:

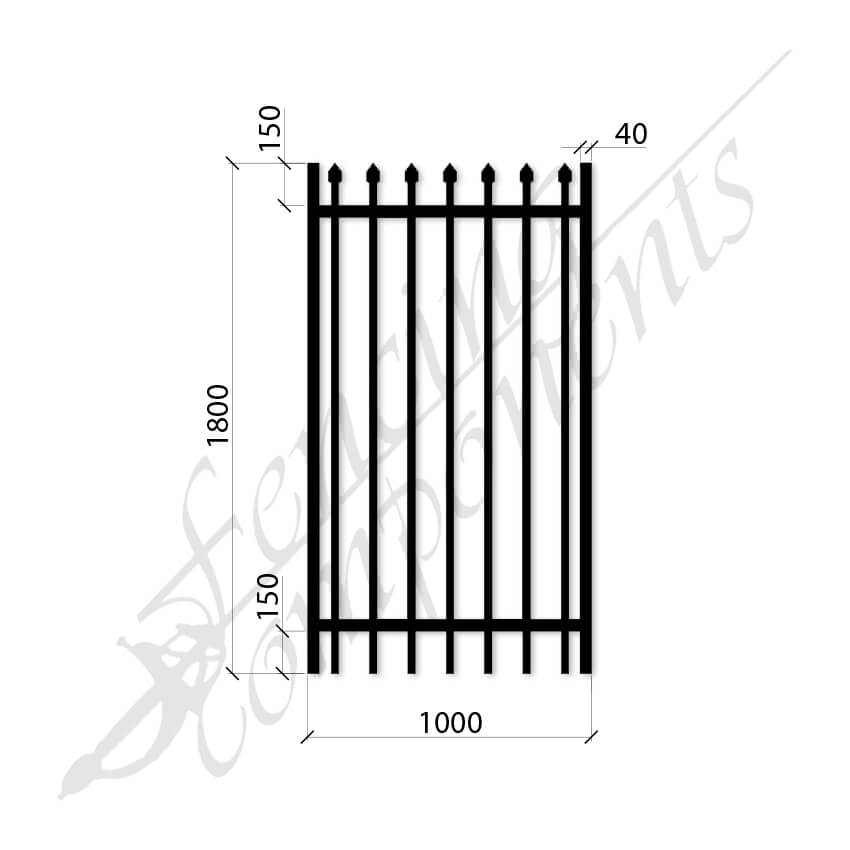

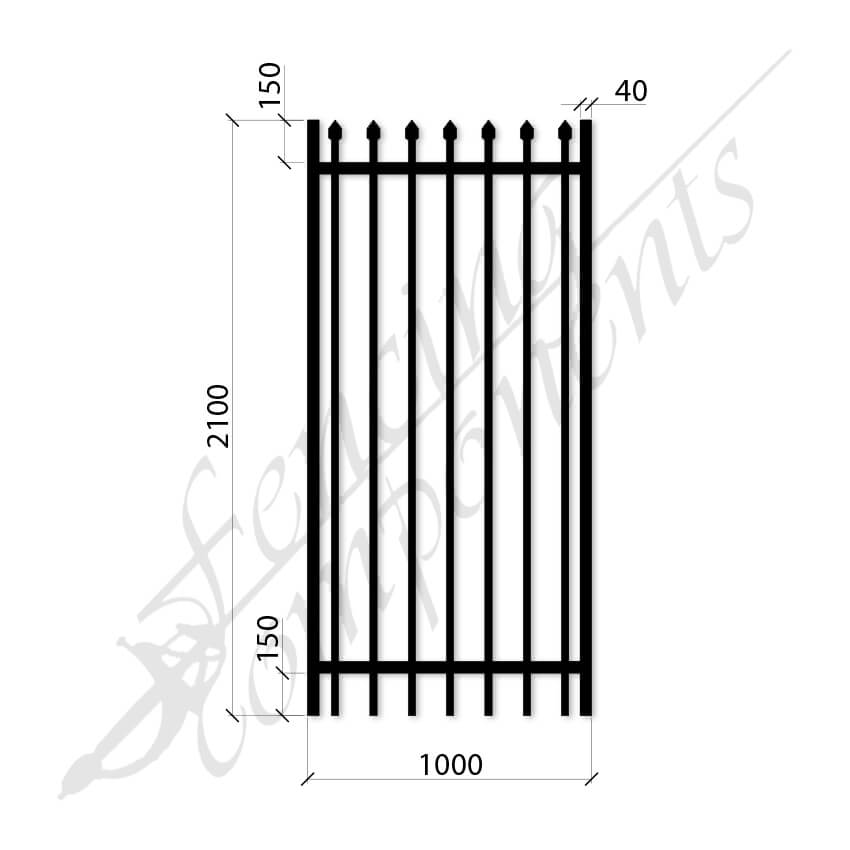

XLT Models: 40x40mm (1.6mm thick) side stiles
Standard Heavy Models: 65x65mm (2.0mm thick) with double bottom rail

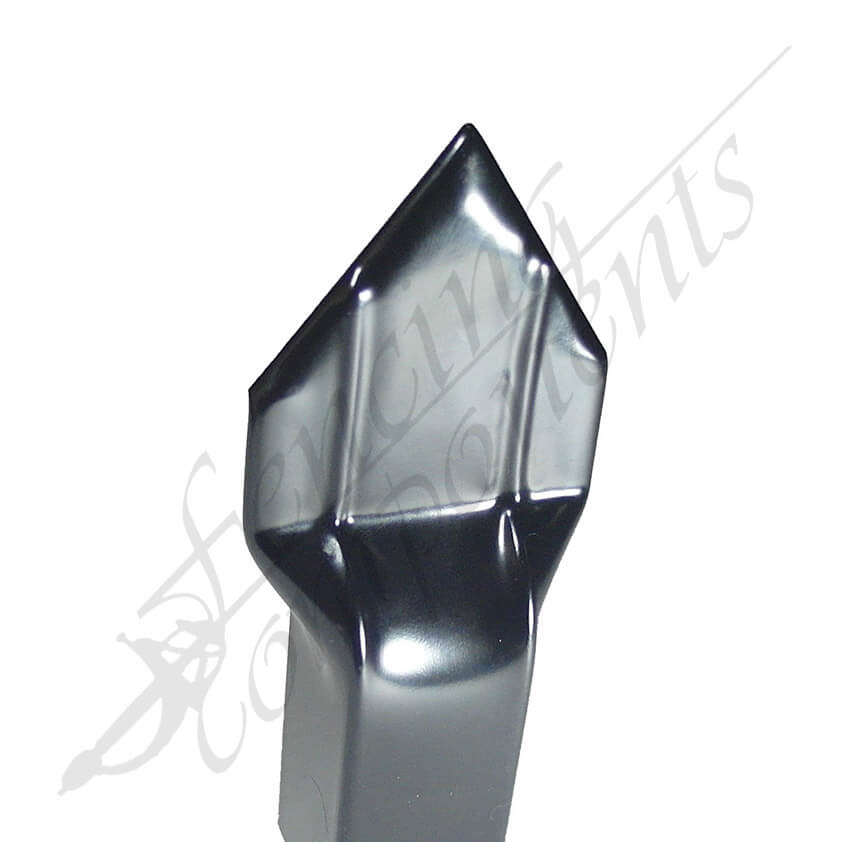

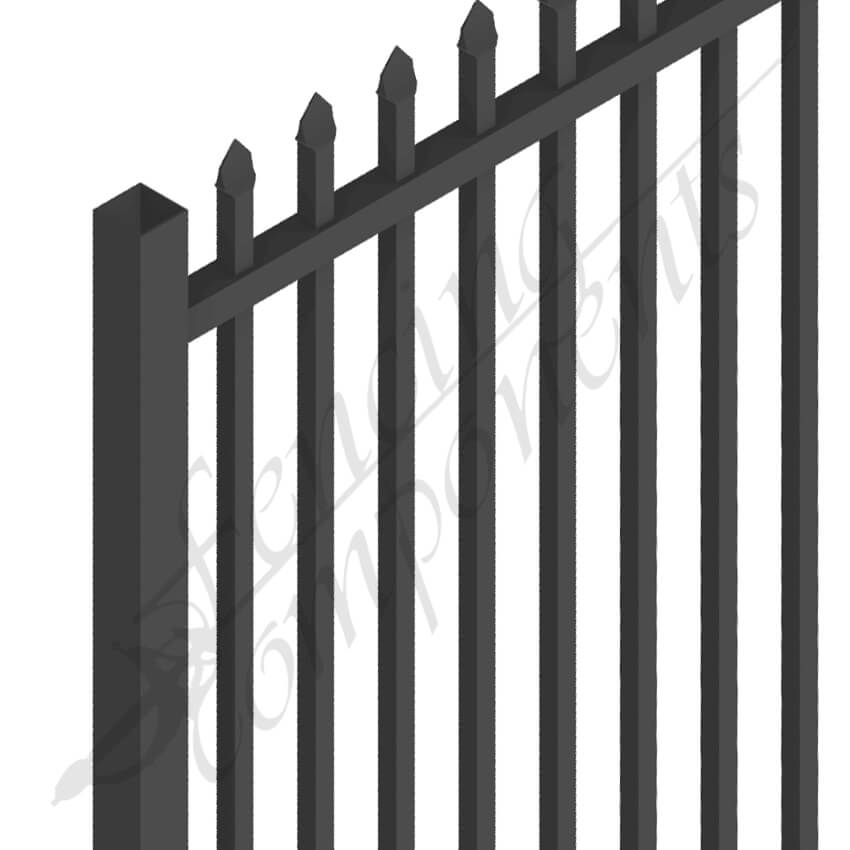

✔ Verticals: 25x25mm (1.2mm thick) – protruding 150mm through the top rail
✔ Available Sizes & Weights:

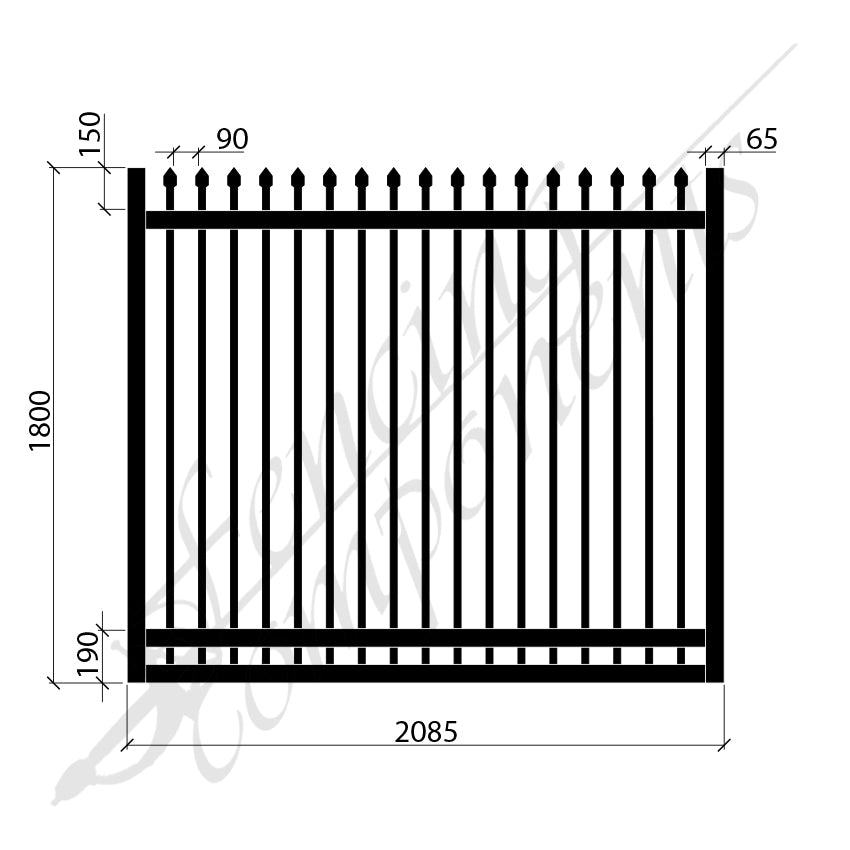

• 1.8m Height Options:
  • 1.0m Width: ±20kg

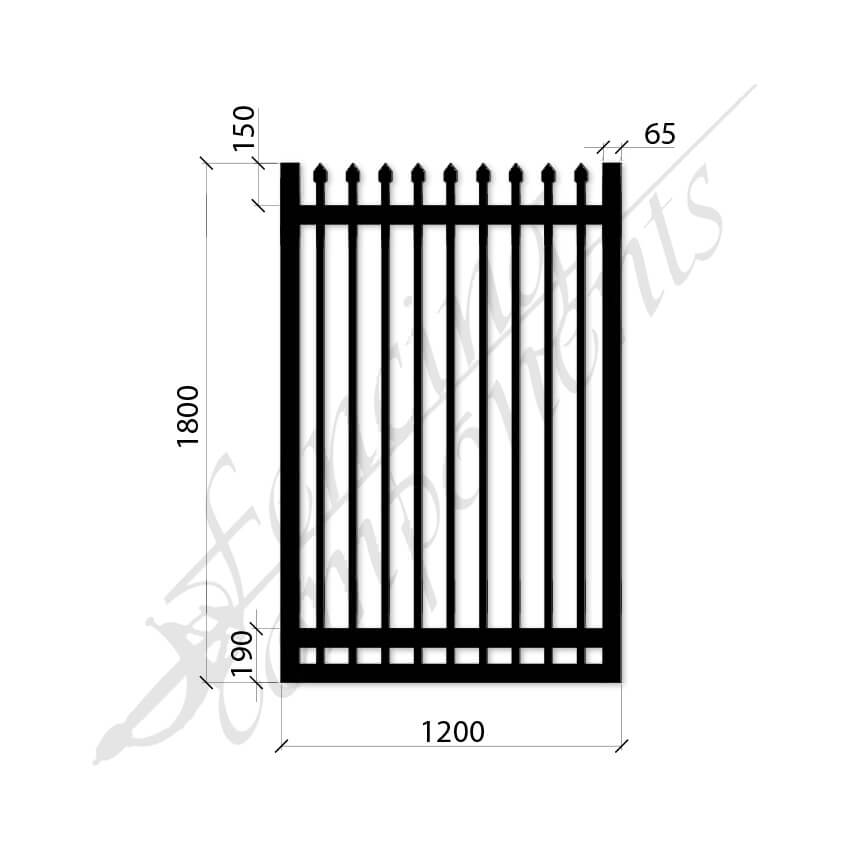

  • 1.2m Width: ±35kg
  • 2.085m Width: ±56kg

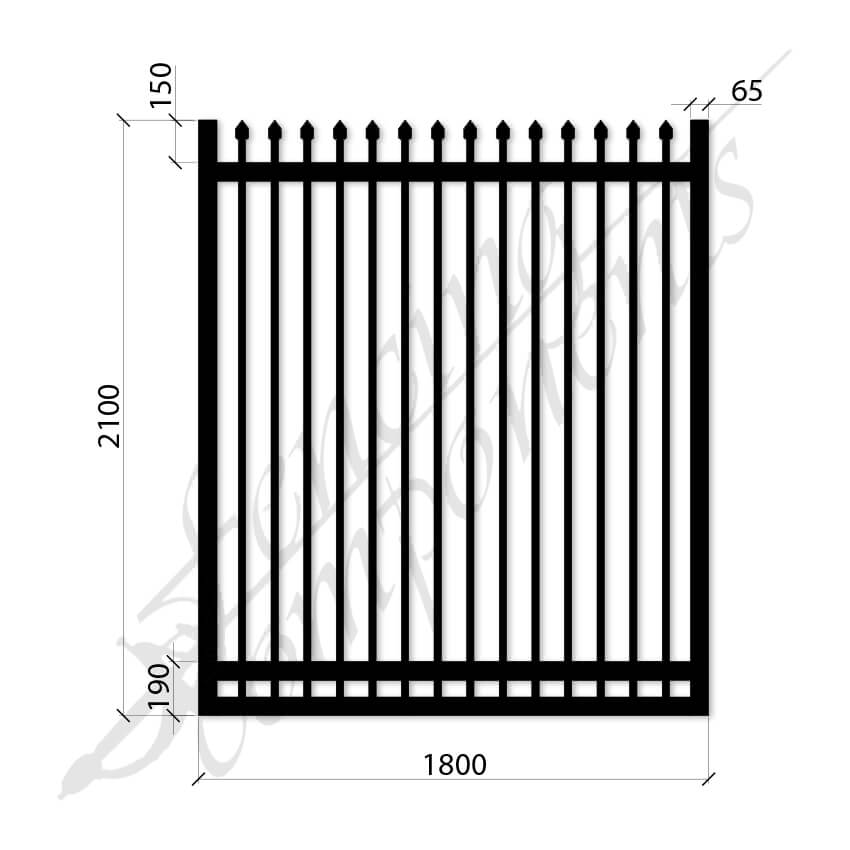

• 2.1m Height Options:
  • 1.0m Width: ±32kg

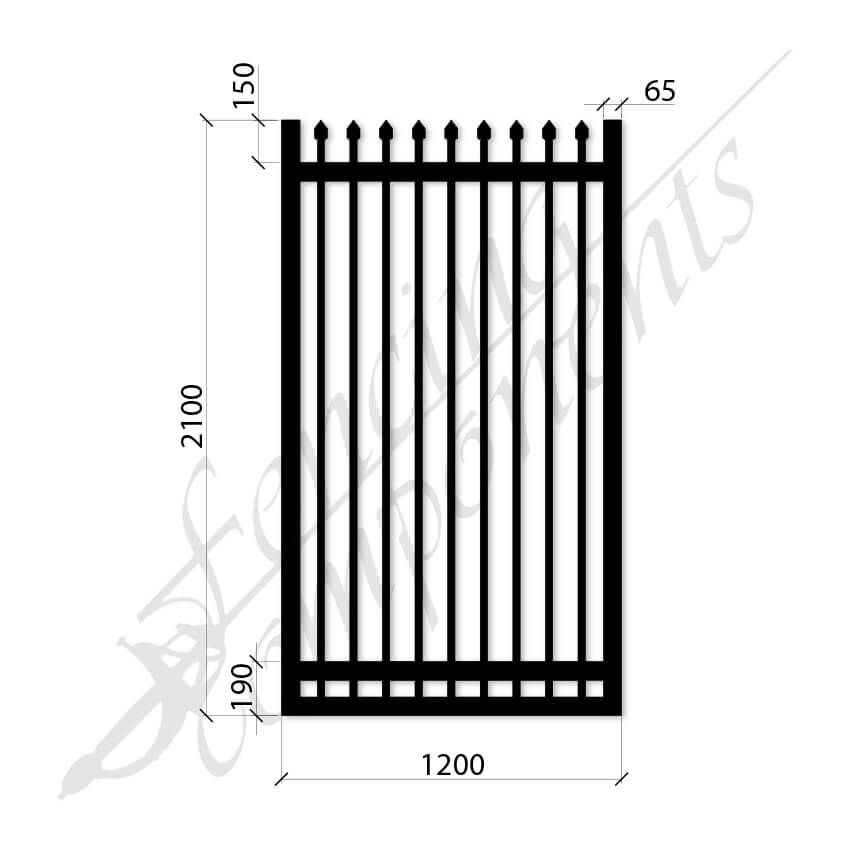

  • 1.2m Width: ±39kg

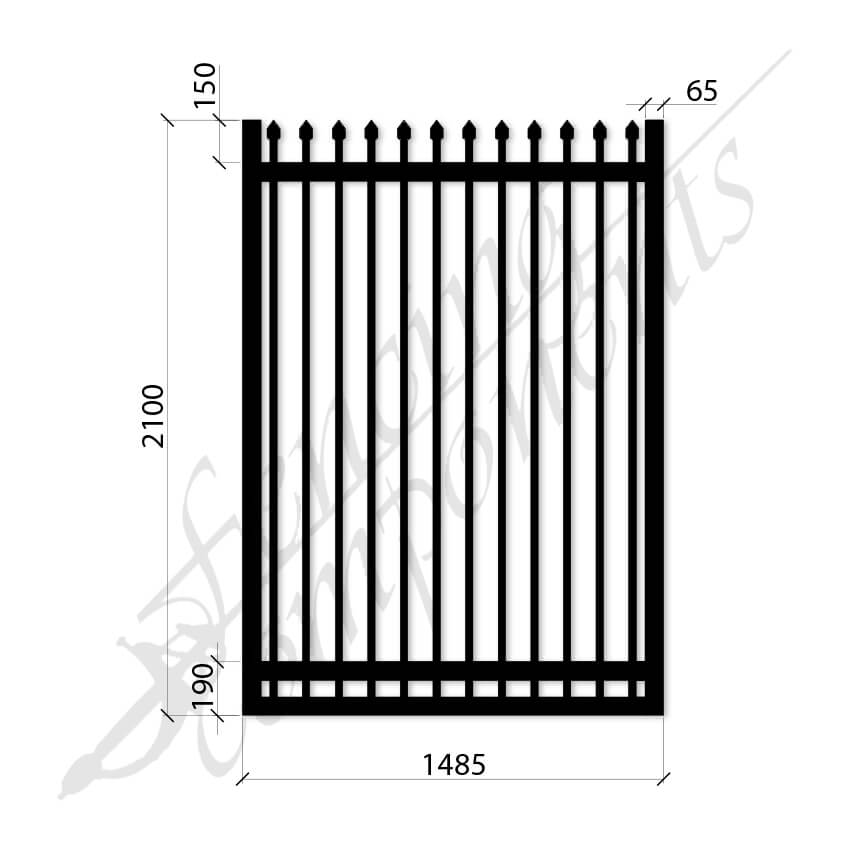

  • 1.485m Width: ±45kg
  • 1.8m Width: ±56kg

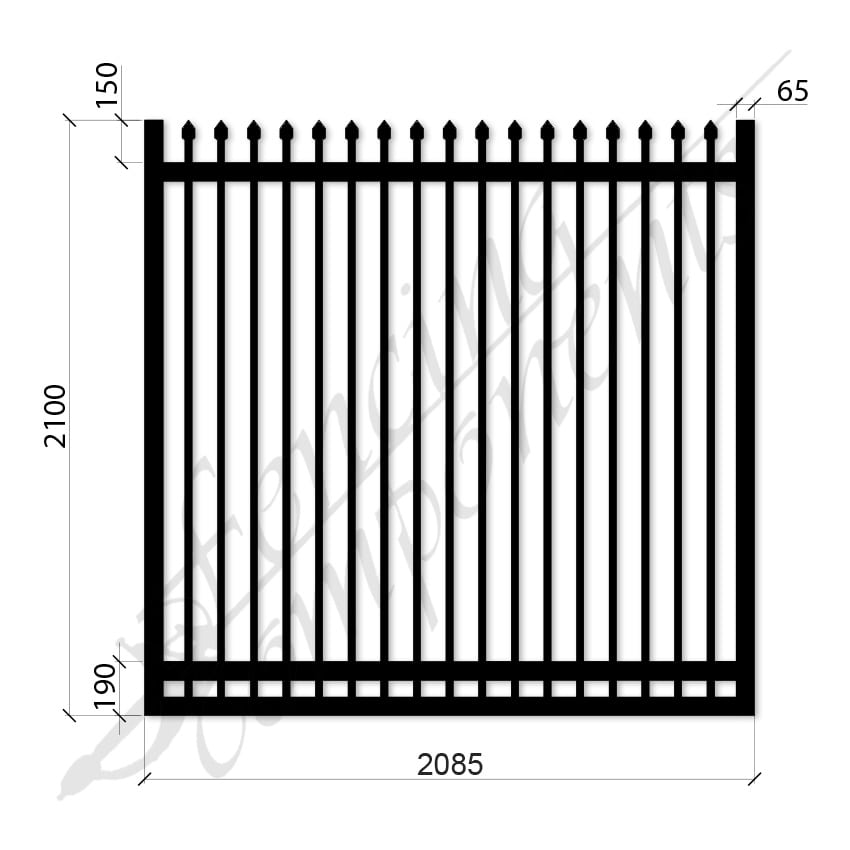

  • 2.085m Width: ±62kg

Why Choose Fencing Components?

• School Specification Approved (Excludes XLT models)
• Certified to Australian Standards for superior strength and durability
• 10-Year Manufacturer’s Registered Warranty (Conditions Apply)
• Comprehensive technical drawings available for project specifications
• Individually tough-packaged gates to prevent transit damage
