LOCINOX TIGER-9005 Hydraulic 180° Gate Closer & Hinge 75kg
LOCINOX TIGER-9005 Hydraulic 180° Gate Closer & Hinge 75kg
SKU:LO-8665BLK
Couldn't load pickup availability

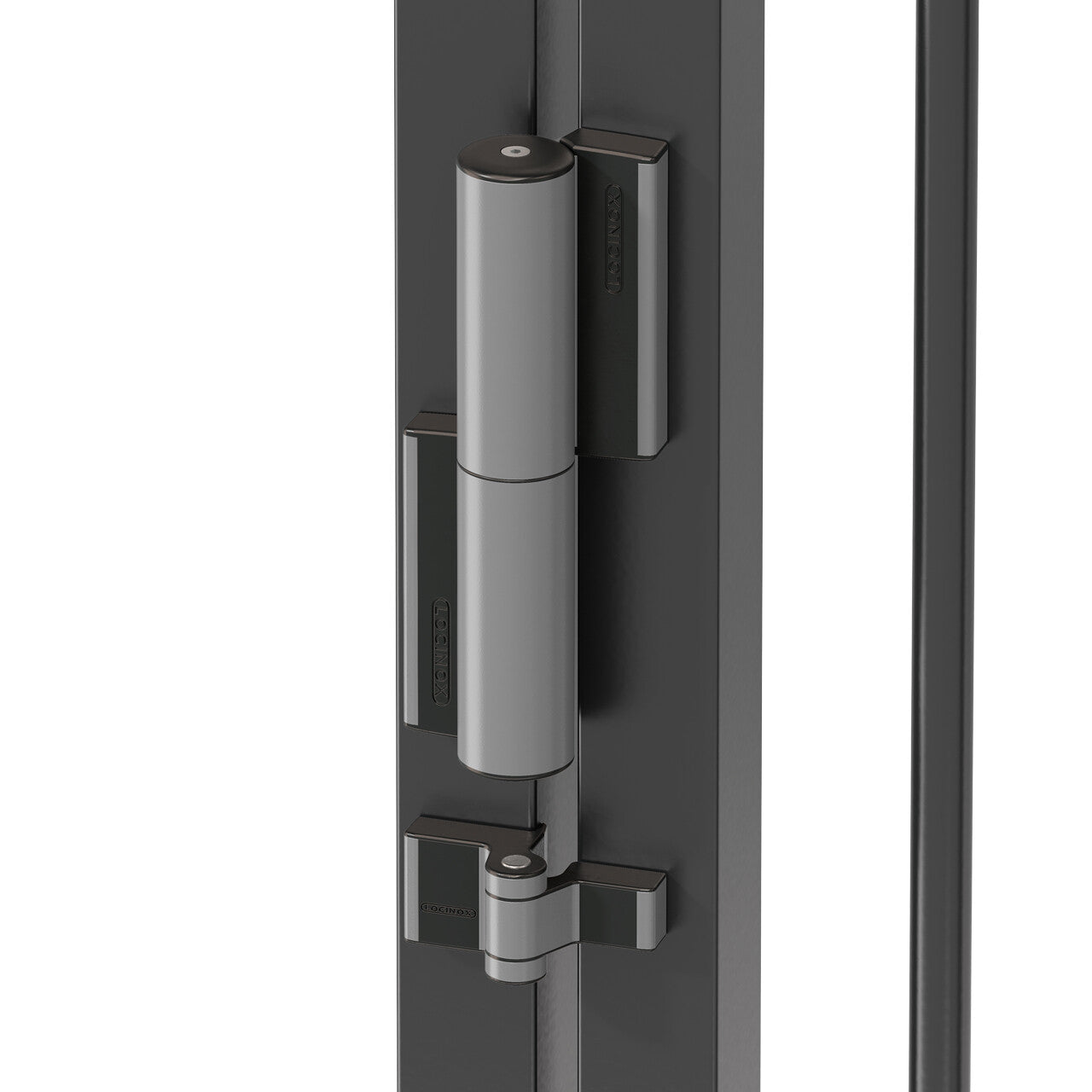

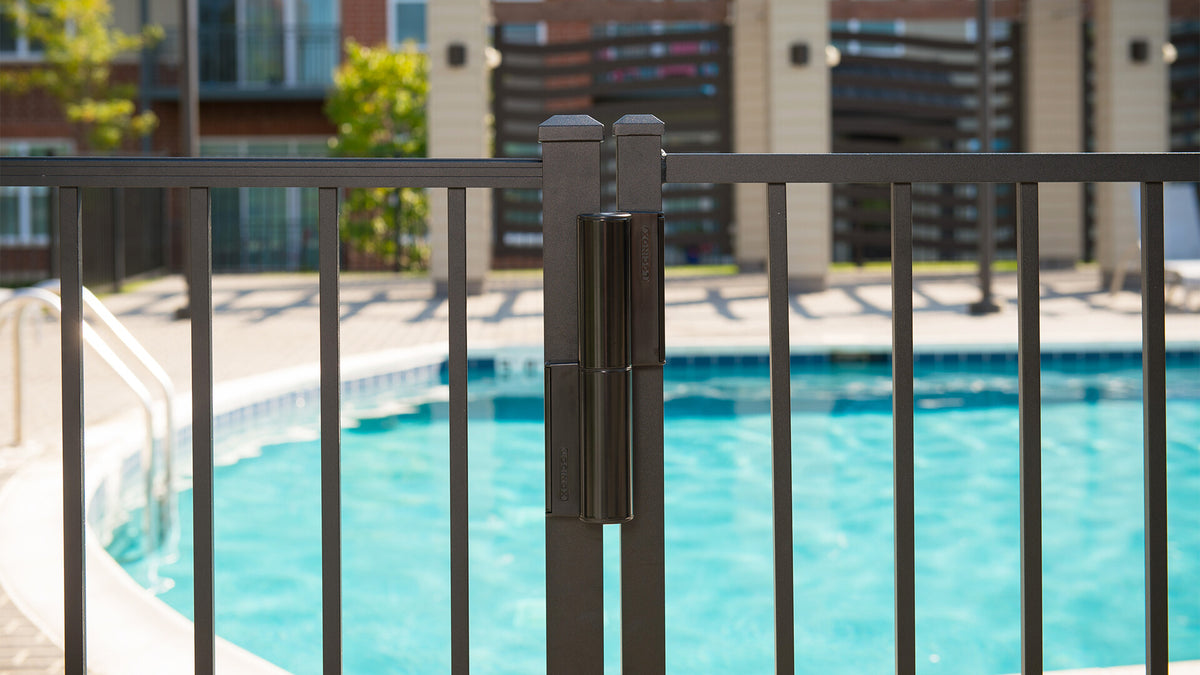

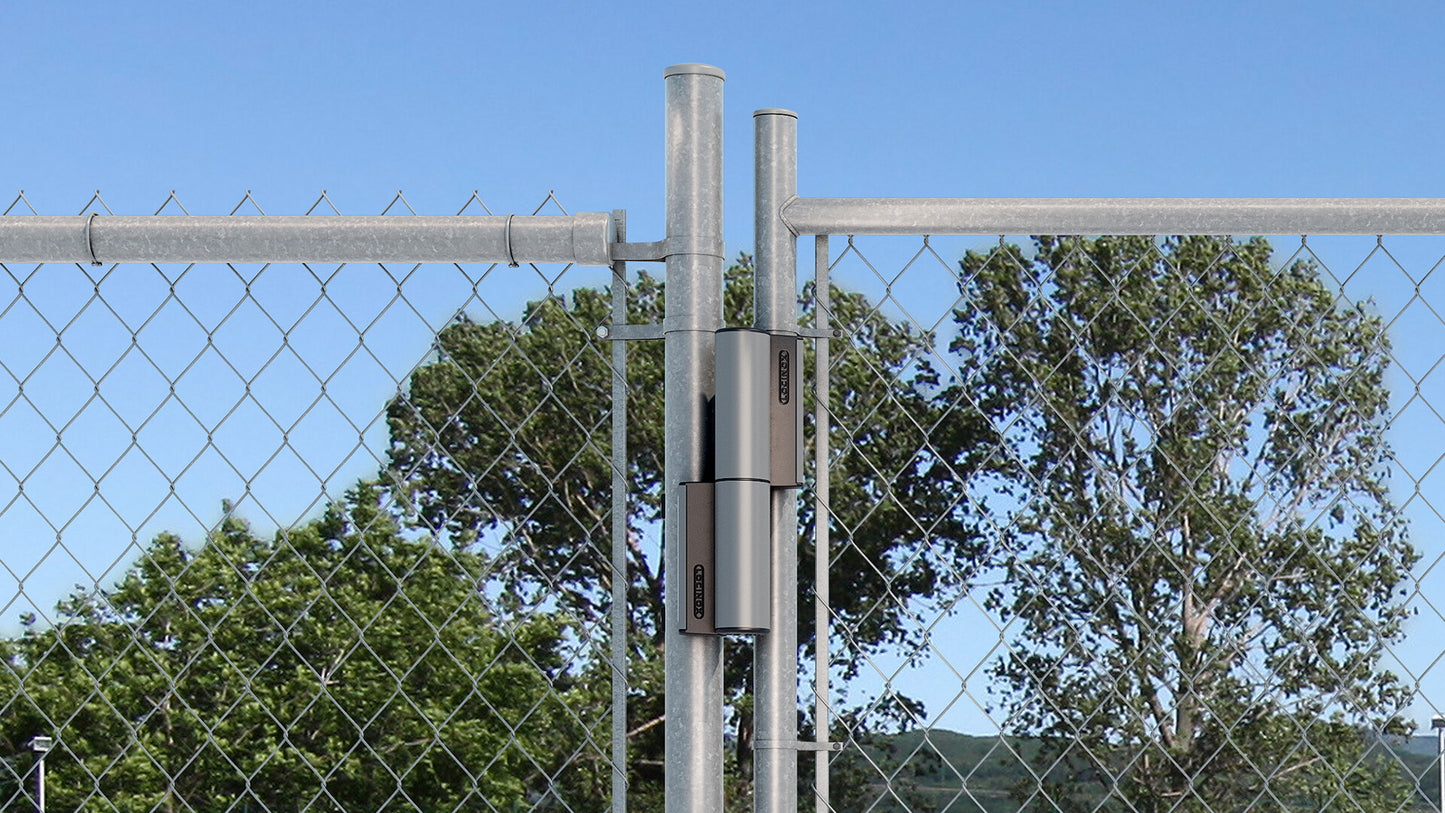

The Locinox Tiger Compact Hydraulic Hinge and Gate Closer combines a load-bearing hinge and a reliable automatic gate closer into one sleek, powder-coated aluminium housing. Engineered for pedestrian and security gates up to 75 kg and 1100 mm wide, this 180° self-closing solution eliminates gate slamming while maintaining smooth, controlled access in all weather conditions.
Key Features & Benefits

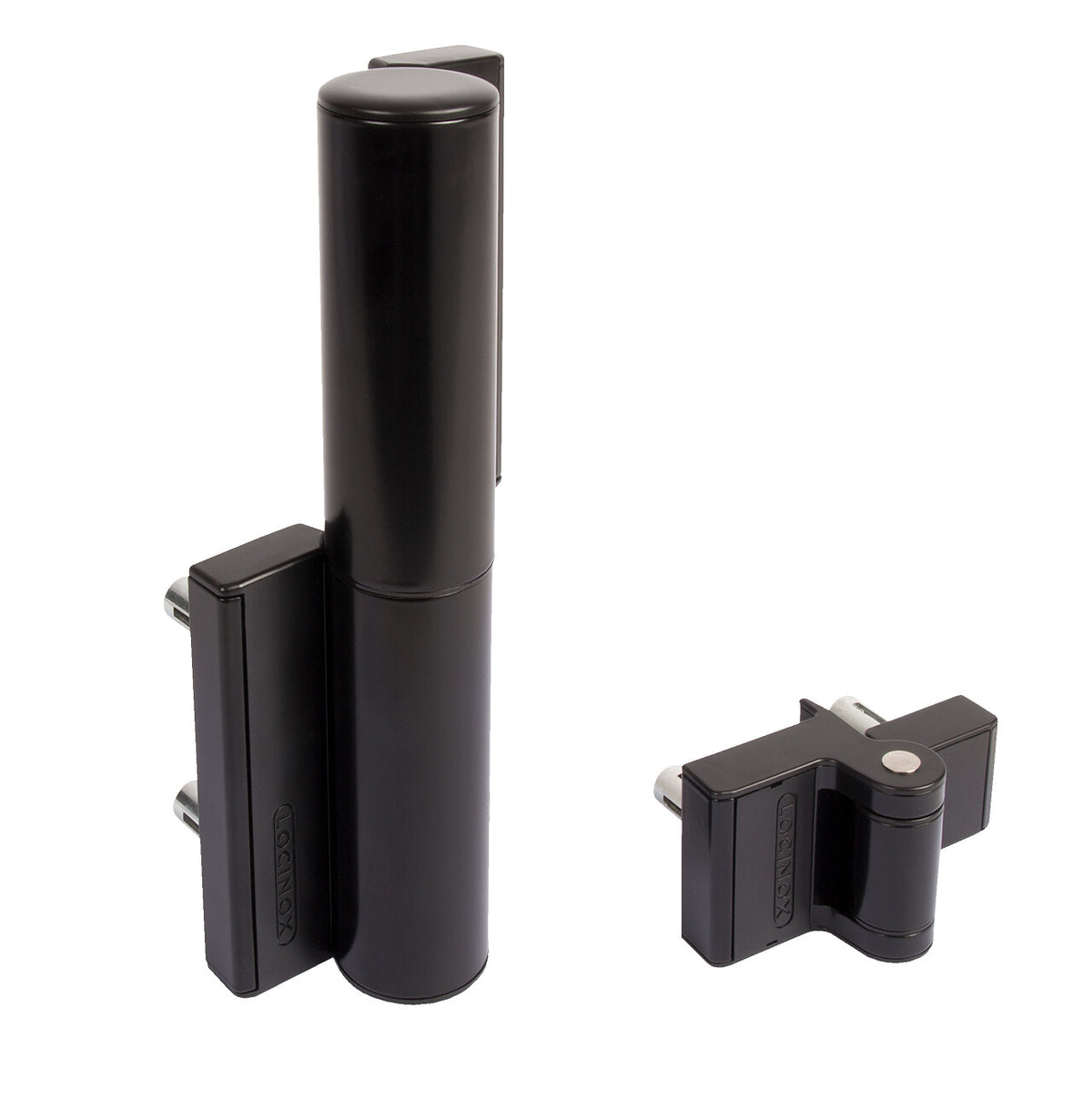

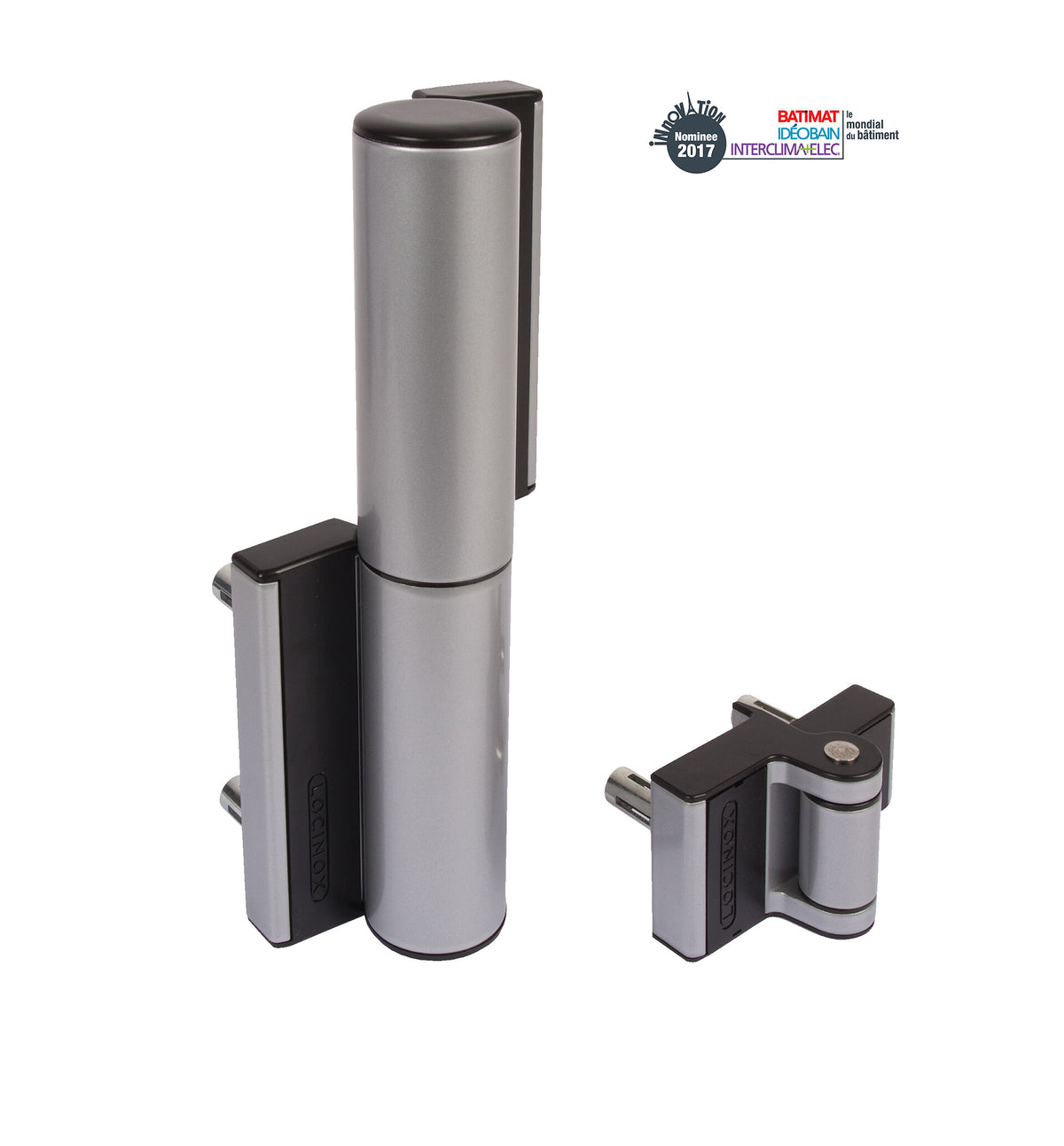

- 2-in-1 Hydraulic System: Functions as both an automated gate closer and a hinge, packaged complete with the matching Puma passive hinge.
- 180° Self-Closing Action: Opens up to a full 180 degrees and smoothly self-closes from any point along its opening arc.
- Precision Speed Control: Features customizable adjustments for both closing speed and final snap force (14 Nm) to ensure a quiet, safe, and secure latch every time.
- All-Weather Durability: Built with high-tech internal components rated for extreme environments from -30°C to +70°C.
- Commercial-Grade Testing: Backed by a 3-year warranty, 500 hours of salt spray exposure testing, and a 500,000-cycle lifespan rating.

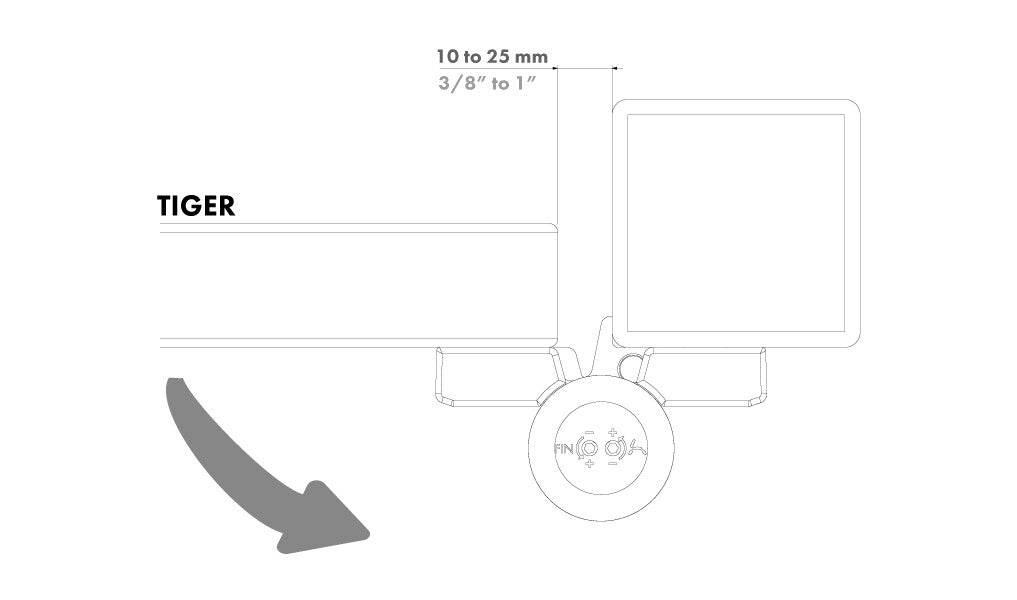

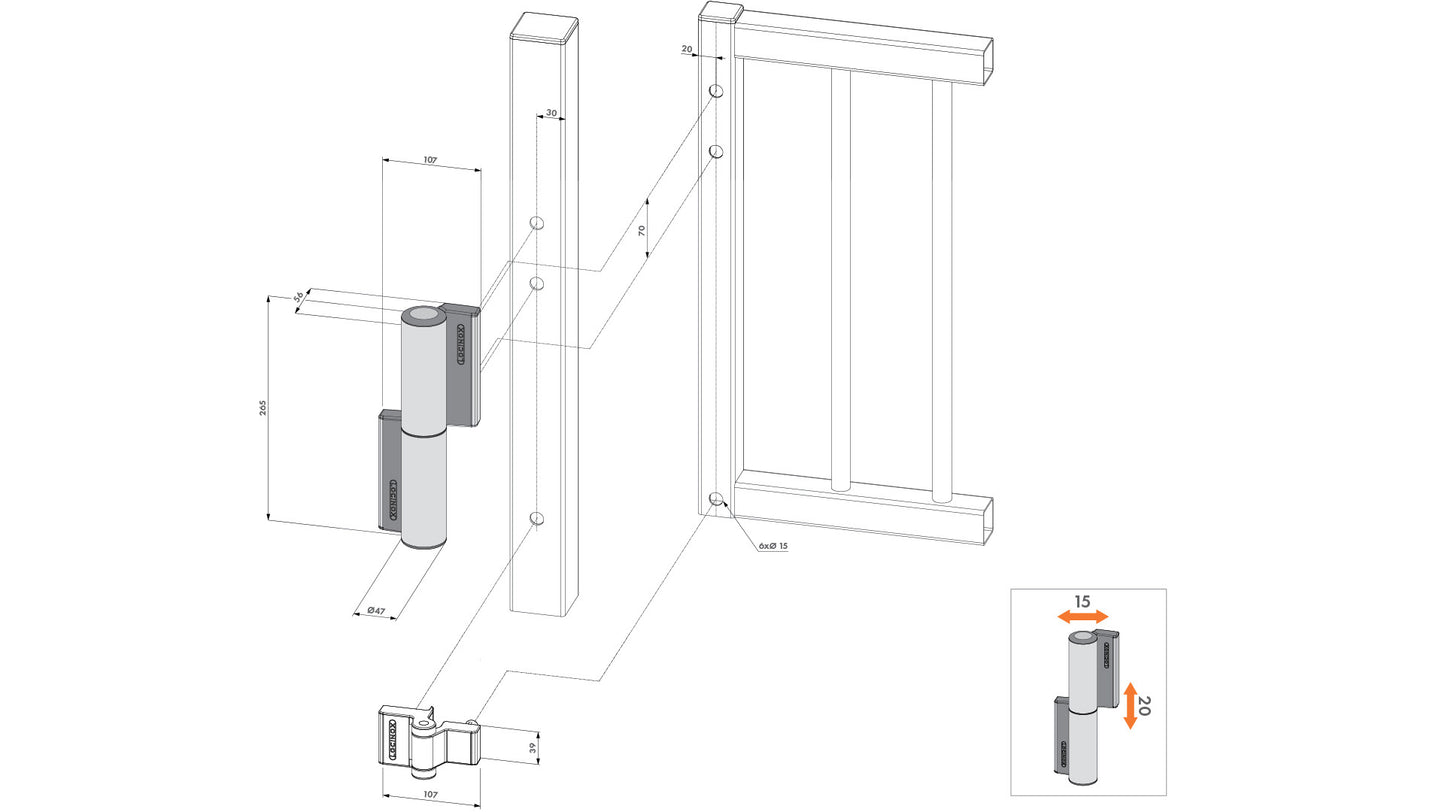

- Fast Mounting & Alignment: Includes 15 mm horizontal and 20 mm vertical adjustability, with quick drill-through installation supported by the optional Tigerdrill tool.
Technical Specifications
| Specification | Details |
| Max Gate Width |
0 to 1100 mm |
| Max Gate Weight |
0 to 75 kg |
| Closing Force |
14 Nm |
| Maximum Opening Angle |
180° |
| Adjustability |
Closing Speed, Final Snap, Left/Right Handed |
| Mounting Tolerances |
15 mm Horizontal / 20 mm Vertical |
| Housing Material |
Powder-Coated Aluminium |
| Operating Temperature |
-30°C to +70°C |
| Testing & Lifespan |
500 Hours Salt Spray / 500,000 Cycles |
| Safety & Accessibility Standards |
ADA, PMR, ROSPA Compliant |
| Warranty |
3 Years |
