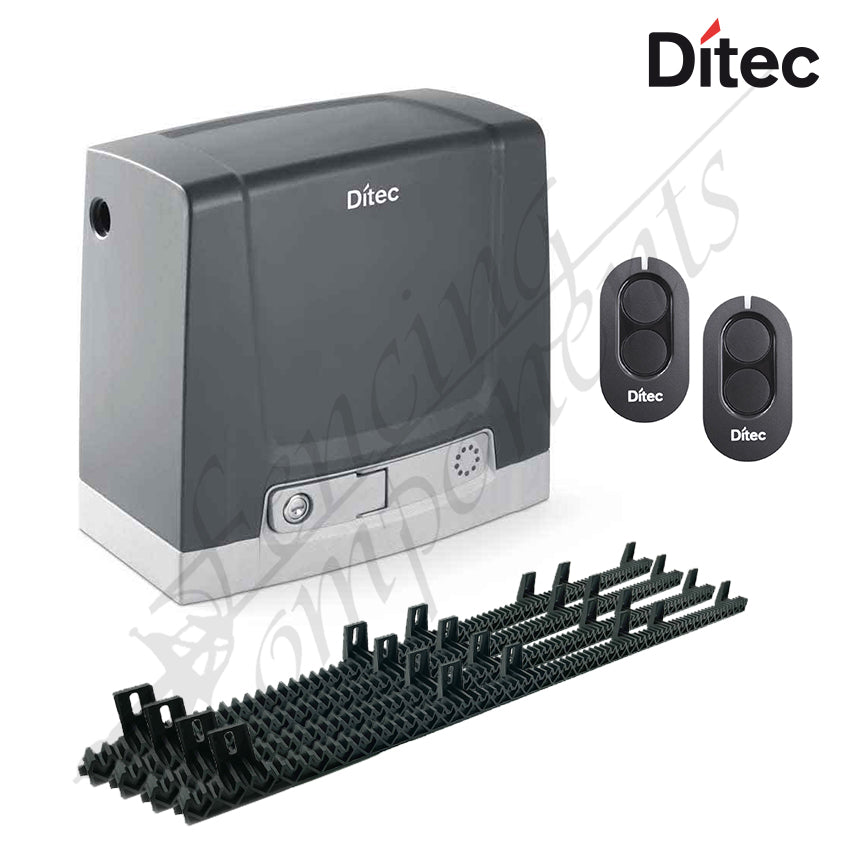

Ditec NeoS4 Sliding Gate Motor Kit - Heavy Duty
Includes :
1x NeoS 400 Ditec Heavy Duty Sliding Gate Motor
4x 1m Ditec Gear Rack
2x Ditec 2 Button Remote Transmitters (Pre-Programmed)
Data Sheet
Specifications
Maximum Gate Length | 12m |
Max Gate Weight | 400 KG |
Model Number | NeoS 400 (Heavy Duty) |
Peak Power | 400N |
Standby Power | 2.2W |
Opening Speed | 100 - 250mm /second |
MHz Frequency | FM 433.92 |
Control Panel | CS12E |
Water Protection | IP24D |
Manufacturer Warranty | 12 Months |
Ditec NeoS 400 Sliding Gate Motor Kit Features
Elevate your property’s security and convenience with the NeoS 400 Gate Opener from Ditec. Expertly crafted for residential, commercial, and industrial applications, this top-tier operating device is engineered to perform flawlessly, even under intense usage and challenging environmental conditions.
- Ideal for a range of applications, from residential gates to high-traffic commercial entries.
- Quick and straightforward installation, with minimal maintenance required.
- Enhanced safety features with a high protection rating and temperature adaptation.
- Customizable operation to suit individual preferences and requirements.
- Energy-efficient and designed for longevity.
Upgrade your gate system with the NeoS 400 Gate Opener – a blend of innovation, efficiency, and reliability, ensuring seamless access control for your property.
-
THE INTELLIGENT, SAFE AND VERSATILE AUTOMATION
Ditec NEOS is the operating device for residential, commercial and industrial applications, designed to work even under intense use and in demanding environmental conditions.
Fast to install and easy to maintain, comes with a control panel with display built in to the operating device.
COMPLETE PEACE OF MIND: sturdy, durable and reliable over time
-
- single-block, die-cast aluminium base provides unmatched stability
- special high-quality, self-levelling grease keeps screws and crowns constantly lubricated
- the temperature sensor fine-tunes the gear motor’s performance in the event of cold, ice and snow (NIO - No Ice Option - function).
INSTALL AND CONFIGURE the operating device more quickly
-
- steel plates of different thickness and design allow for correct installation in all circumstances and levelling screws can be used to adjust the operating device to the millimetre
- IP24D protection rating prevents all contact with live parts
- the self-learning procedure is made easy by the display, navigation pushbuttons and a specific remote control, for installation of the motor in just two steps
- here are three predefined configurations for residential and condominium use. But that’s not all: removable storage allows operating settings to be saved and copied to another operating device
- 433 MHz and 868 MHz frequencies are available
UNIQUE PERFORMANCE
- Check the status of your operating device! LEDs allow you to easily monitor the status of the operating device without opening the ASA cover.
-
