Anti-Lift Gate Hinges up to 250kg

New In Store — Swing Gate Hardware

Locks In.
Can’t Lift Off.

Introducing the Goliath Steel Ball Hinge range — an interlocking ball-and-socket design that prevents your gate from being lifted off while in the closed position. Available in Weld-Bolt, Bolt-Bolt, and Heavy Duty Bolt-Bolt in Satin Black.

SKU: #1061 · #1062 · #1062-BLK | Up to 250kg Capacity | Steel | Interlocking

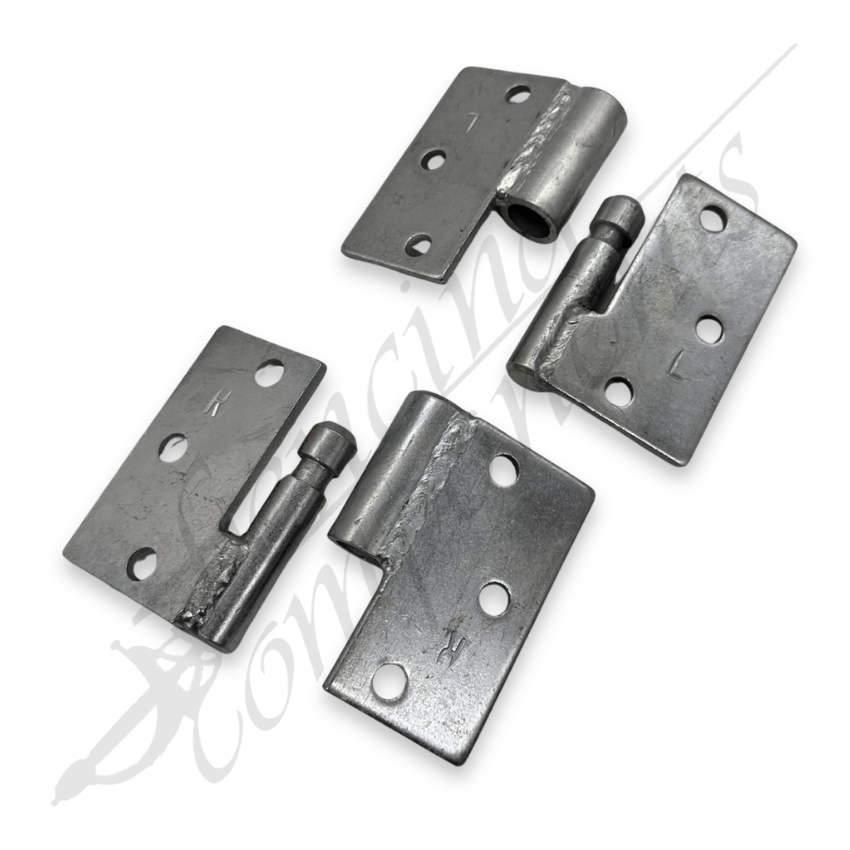

Goliath Steel Ball Hinge dissected view showing interlocking mechanism

Key Features & Benefits

Goliath Steel Ball Hinge Range

—	Interlocking Ball & Socket Design — The steel ball sits inside a recessed cup — when closed, the gate physically cannot be lifted off the hinge pin. Security built into the hardware itself.
—	Up to 250kg Load Capacity — Standard models handle 150kg per hinge. Need more? The Heavy Duty version steps up to 250kg, built for larger commercial and industrial gates.
—	Bolt-Bolt or Weld-Bolt Fixing — Choose bolt-on for easy retrofit and adjustment, or weld-on for a permanent, flush-mounted installation on steel frames.
—	Powdercoated Satin Black Option — The Heavy Duty Bolt-Bolt is available in a durable satin black powdercoat finish — ready to match dark gate frames and modern fence lines.
—	Left & Right Hand Available — Every model is stocked in both left and right hand orientations. Order the pair you need for your specific gate swing direction.

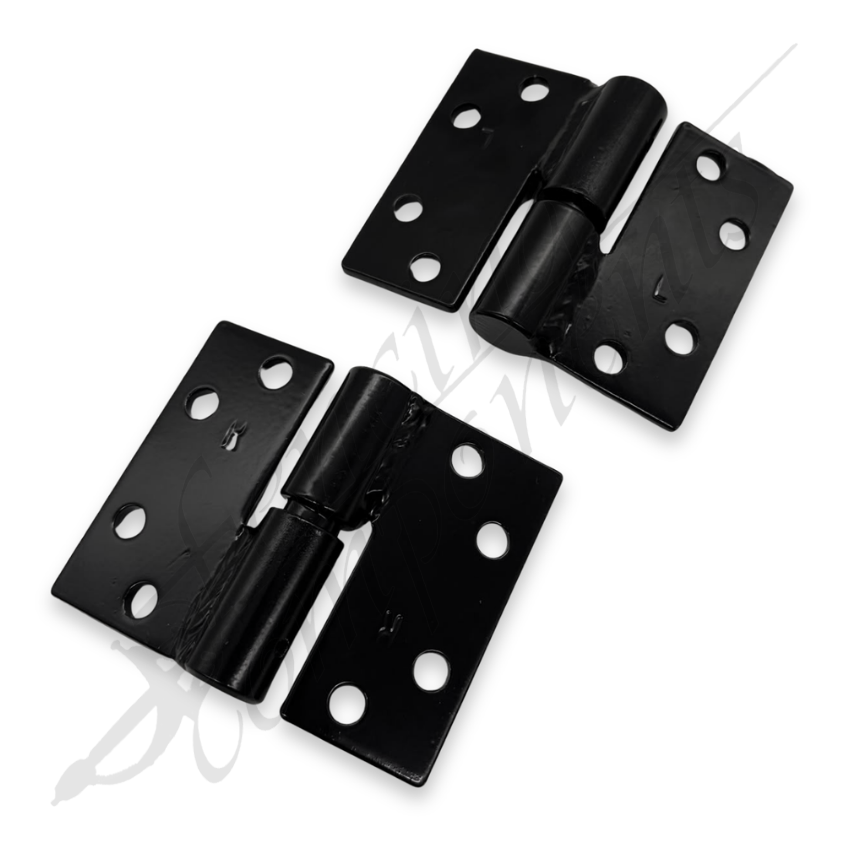

Goliath Steel Ball Hinge Heavy Duty Satin Black

Shop The Range

Why Choose This Hinge?

Three models, one security principle. The Goliath range uses a precision steel ball bearing that interlocks when the gate is closed — preventing lift-off and forced entry at the hinge point.

Anti-Lift Security

Interlocking design means the gate stays put when closed. No pins to pull, no gaps to exploit.

Heavy Duty Option

250kg capacity for oversized gates. Larger plate, thicker steel, same interlocking security.

Black Powdercoat

Heavy Duty version ships in satin black — no painting, no waiting. Match your dark gate frames.

Weld or Bolt

Permanent weld-on or adjustable bolt-on. Pick the fixing method that suits your install.

Technical Specifications

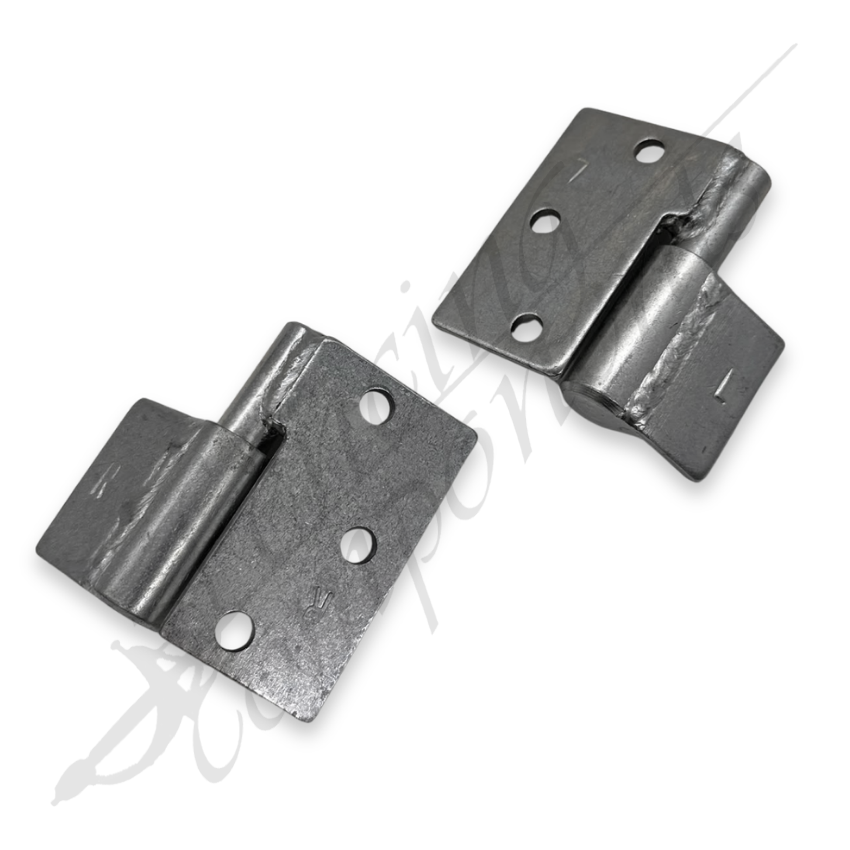

✓ #1061 Weld-Bolt: 86mm H x 86mm W · 150kg capacity · 15.5mm shaft · Galvanised

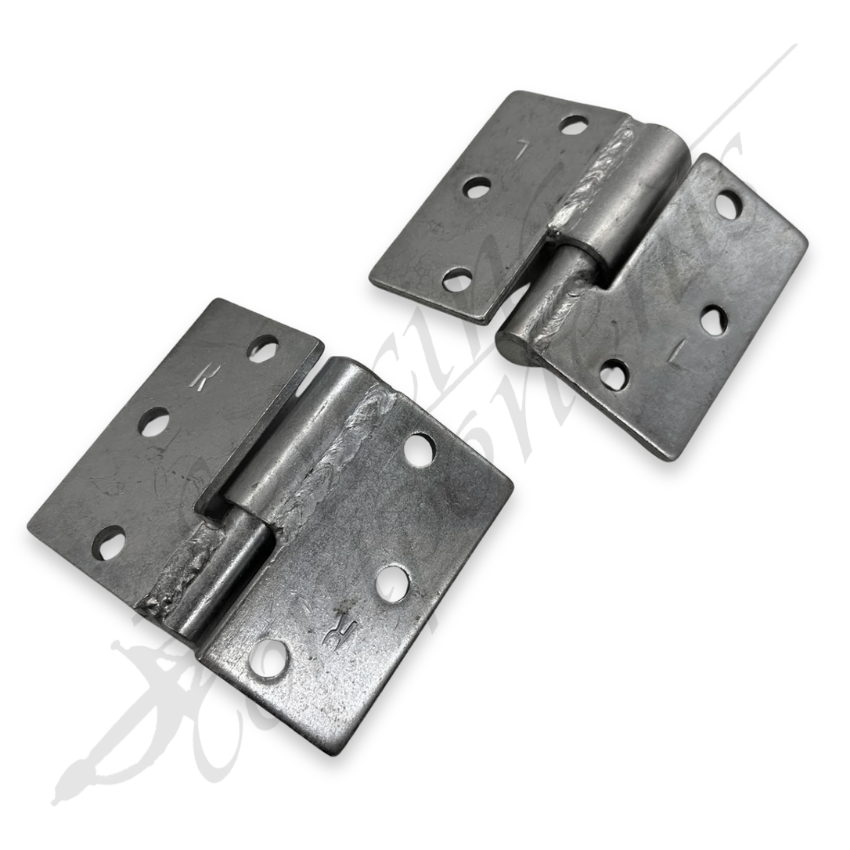

✓ #1062 Bolt-Bolt: 86mm H x 104mm W · 150kg capacity · 15.5mm shaft · Galvanised
✓ #1062-BLK Heavy Duty Bolt-Bolt: 100mm H x 125mm W · 250kg capacity · Satin Black Powdercoat
✓ Interlocking ball-and-socket — gate cannot be lifted while closed
✓ Available in Left and Right hand orientations
✓ Sold individually (single hinge per unit)
✓ Steel construction throughout

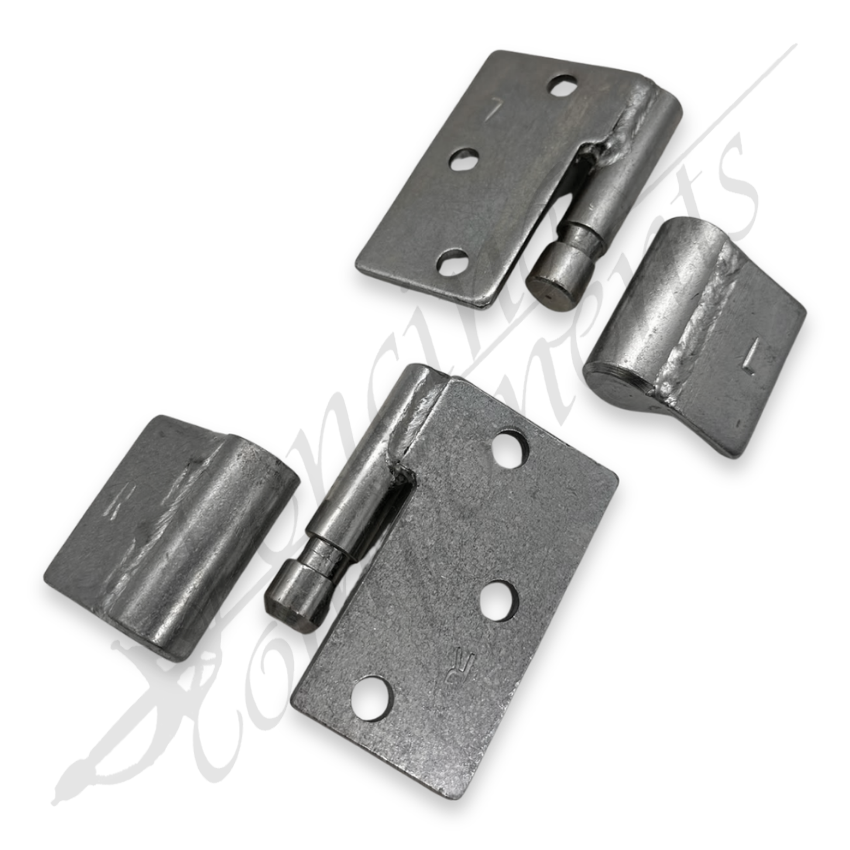

Goliath Steel Ball Hinge Weld-Bolt dissected view

Building A Gate?
Get The Right Hinges.

Tell us your gate size and weight and we’ll recommend the right Goliath hinge for the job. Bulk pricing available for installers and builders.

Request A Quote

Australia-wide delivery · Click & Collect from Chipping Norton NSW 2170

In Stock · Nationwide Delivery · Bulk Pricing Available

Ready To Secure
Your Gate?

The full Goliath Steel Ball Hinge range is available now at Fencing Components. Weld-Bolt, Bolt-Bolt, and Heavy Duty in Satin Black — all in stock.

Shop Hinges
